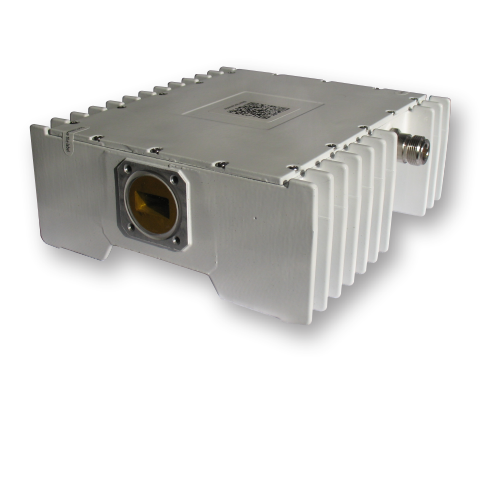

4W Ku-band Block Up Converters

$941.00 – $2,244.00

The BUC converts a 950…1750(1450) MHz range signal to the
10,7…11,5 GHz,
11,7…12,5 GHz,
12.75…13.25 GHz,
13.75…14.25 GHz,
13.75…14.5 GHz,
14.00…14.50 GHz and
14.00…14.80 GHz output ranges.

4W_Ku-band_BUC_leaflet

1 file(s) 2.2 MB

Download

4W_14GHz_Ku-band mini BUC leaflet

1 file(s) 1.9MB

Download

Also, you can get information about the cost of converters for the following ranges:

CN : 3.700 ~ 4.200 GHz (LO=5.15 GHz)
CA : 5.850 ~ 6.425 GHz (LO=4.9 GHz)
CF : 5.850 ~ 6.725 GHz (LO=4.9 GHz)
CB : 6.425 ~ 6.725 GHz (LO=5.275 GHz)
CE : 6.425 ~ 7.025 GHz (LO=5.275 GHz)
CC : 6.725 ~ 7.025 GHz (LO=5.75 GHz)
XA : 7.9 ~ 8.4 GHz (LO Freq = 6.95 GHz)
UA : 10.2 ~ 10.7 GHz (LO Freq = 9.25 GHz)
L : 10.7 ~ 11.5 GHz (LO Freq = 9.75GHz)
E : 11.70 ~ 12.50 GHz (LO Freq = 10.75GHz)
D : 12.25 ~ 12.75 GHz (LO Freq. = 11.3GHz)
G : 12.75 ~ 13.25 GHz (LO Freq. = 11.80GHz)
F : 13.00 ~ 13.25 GHz (LO Freq. = 12.05GHz)
B : 13.75 ~ 14.25 GHz (LO Freq = 12.80GHz)
C : 13.75 ~ 14.50 GHz (LO Freq = 12.80GHz)
A : 14.00 ~ 14.50 GHz or 14.00 ~ 14.80 GHz (LO Freq = 13.05GHz)
R: 14.50 ~ 14.80 GHz (LO Freq = 13.55GHz)
O : 17.30 ~ 17.70 GHz (LO Freq. = 16.35GHz)
KA : 29.5 ~ 30.0 GHz (LO Freq = 28.55 GHz)

10.7-11.5GHz; 11.7-12.5GHz; 12.75-13.25GHz

Clear

SKU: N/A Category: Antennas&Up-Converters

Description

– BUC is ideal for Broadband VSAT RF terminals and MVDS broadcasting; – 36dBm output power; – Optional Internal Reference source; – RoHS Compliant; – Small Size & Mass; – Power Consumption : 35W Max; – Air Humidity : up to 100%; – Two years Warranty.
