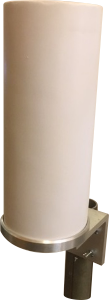

Circular WiFi antenna
$25.00
Circular Wi-Fi antenna is used like outdoor antenna.
Brand name: TROPHY
Manufacturer: TROPHY ELECTRONICS LLC, Georgia
Description
Antenna has a circular directivity pattern.
Radio-transparent shelter is made of fiberglass material using polyester binders. The outer surface of the shelter is covered with a gelcoat to protect against ultraviolet radiation from the sun as well as to prevent icing.
Antenna service life is more than 15 years.

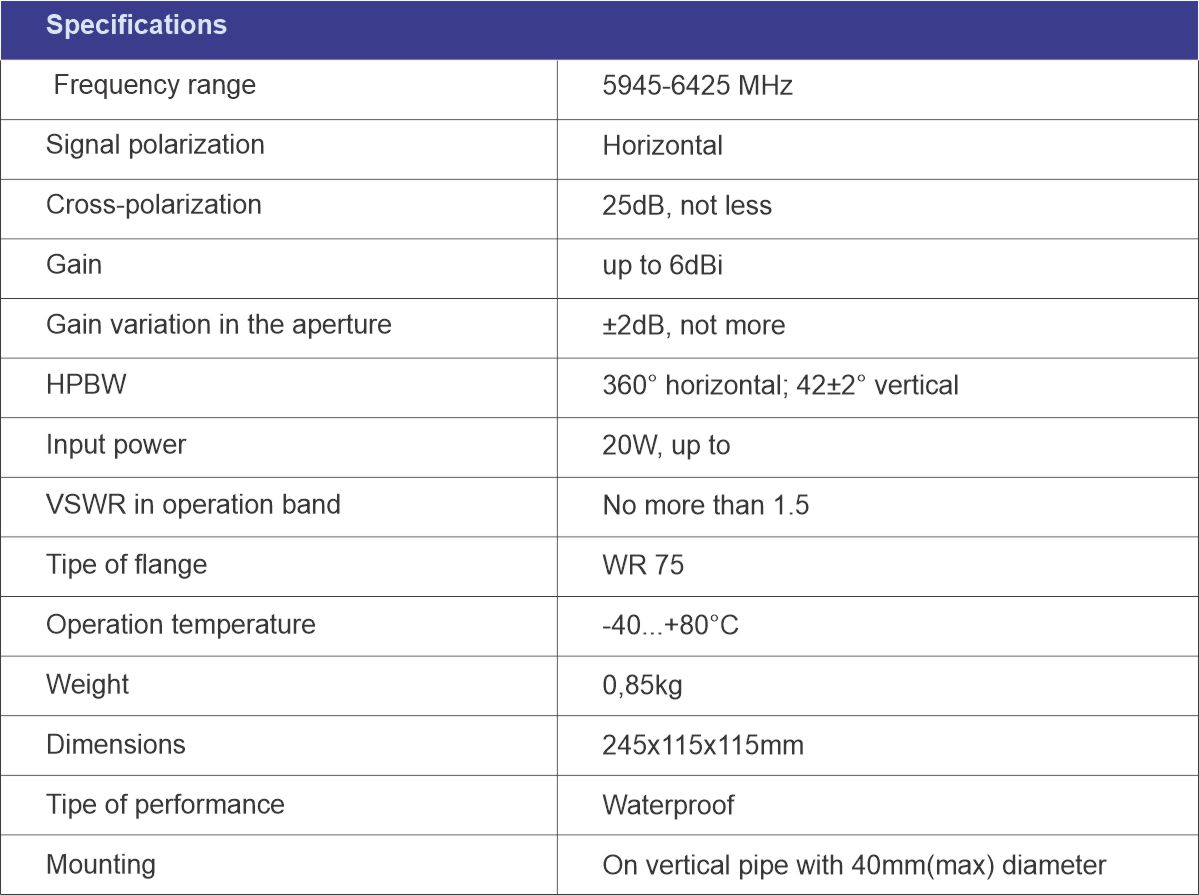

- Antenna aperture is: 360° Azimuth Beam; 42° Elevation Beam.
- Antenna is a slotted twenty-element array implemented on a 19×9.5mm waveguide made of galvanized brass.
- Connecting unit is 19×9.5mm flange waveguide.
- Polarization: linear horizontal
- Operating frequency band: 5945-6425 MHz
- Beam width in elevation plane: 42 degrees
- Gain at maximum: 6 dBi
