Sector C-band transmitting antenna
$520.00

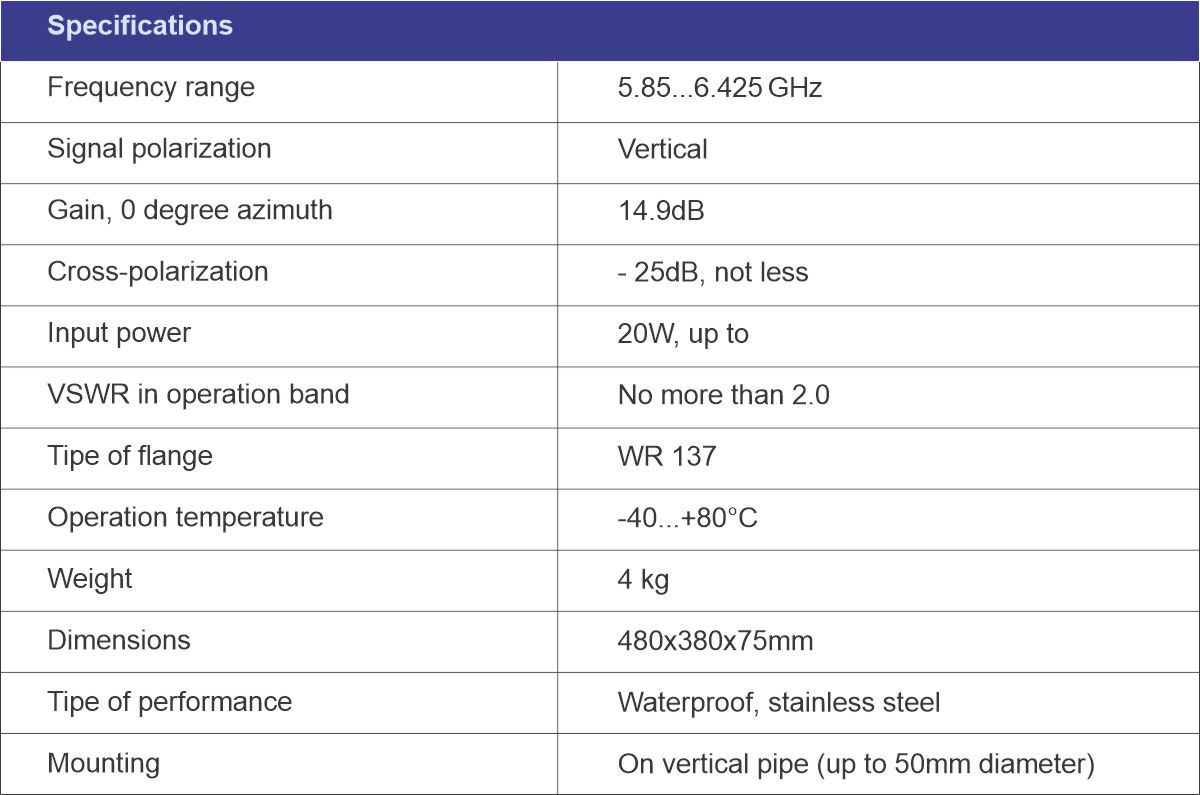

Description
A sector horn antenna is used as an external transmitting antenna for a MVDS HeadEnd and Repeaters.
- The polarization of the antenna is vertical.
- The type of flange for connecting the BUC is WR-137.

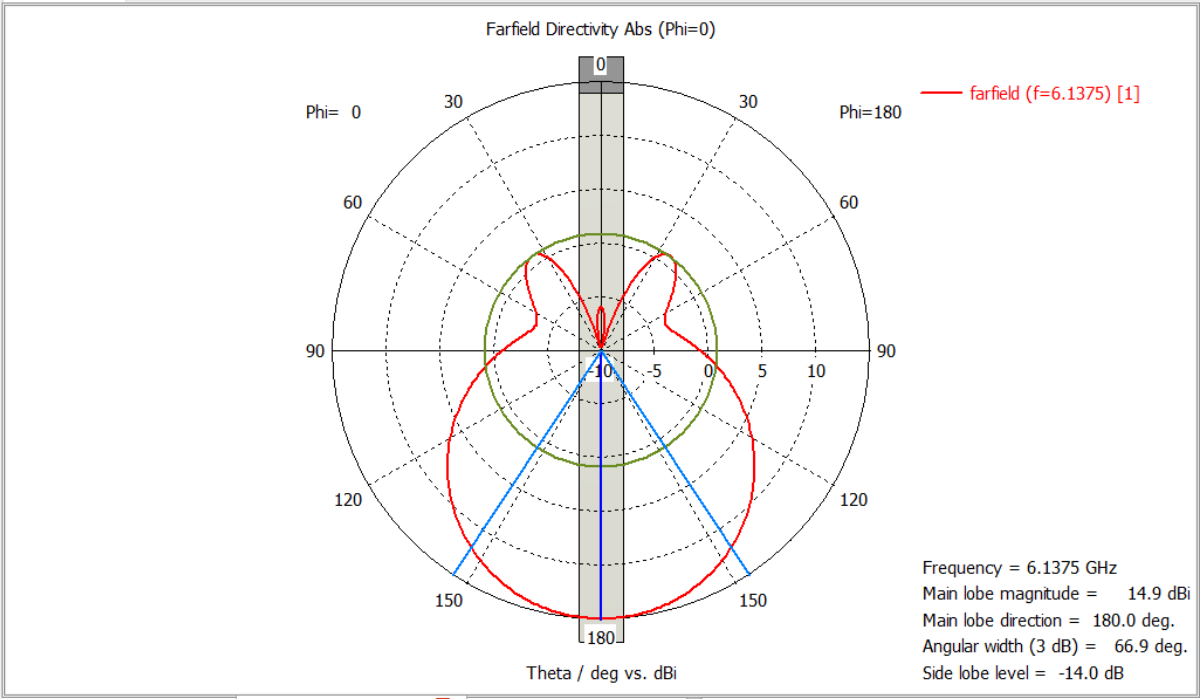

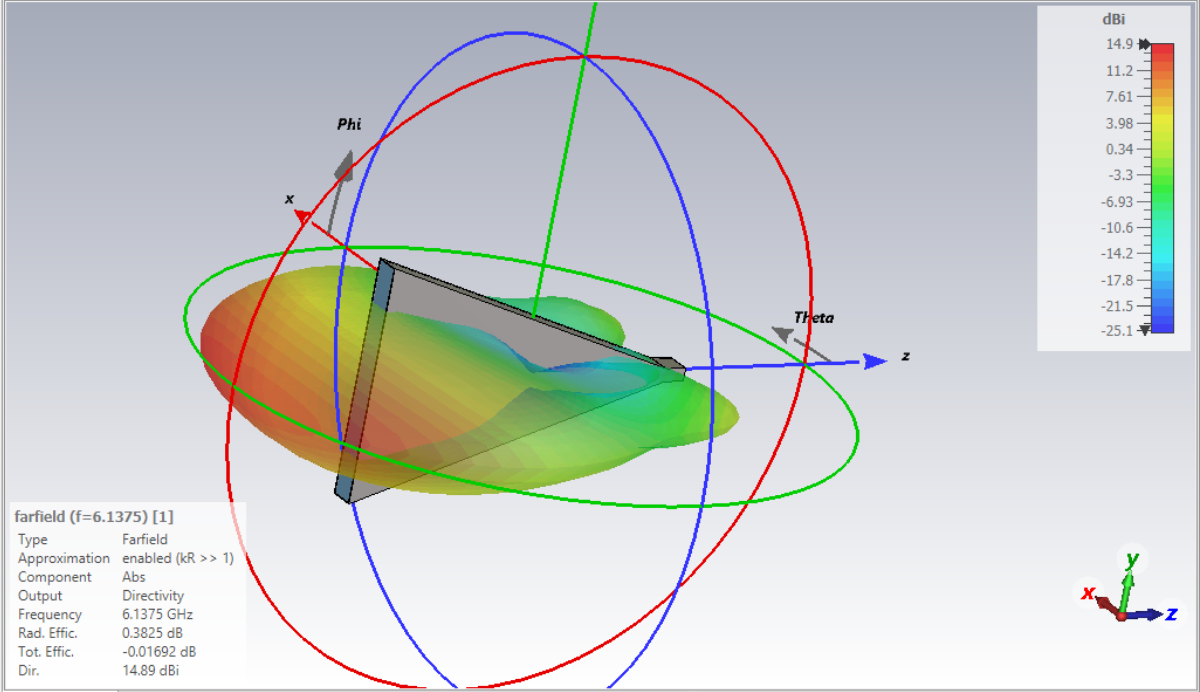

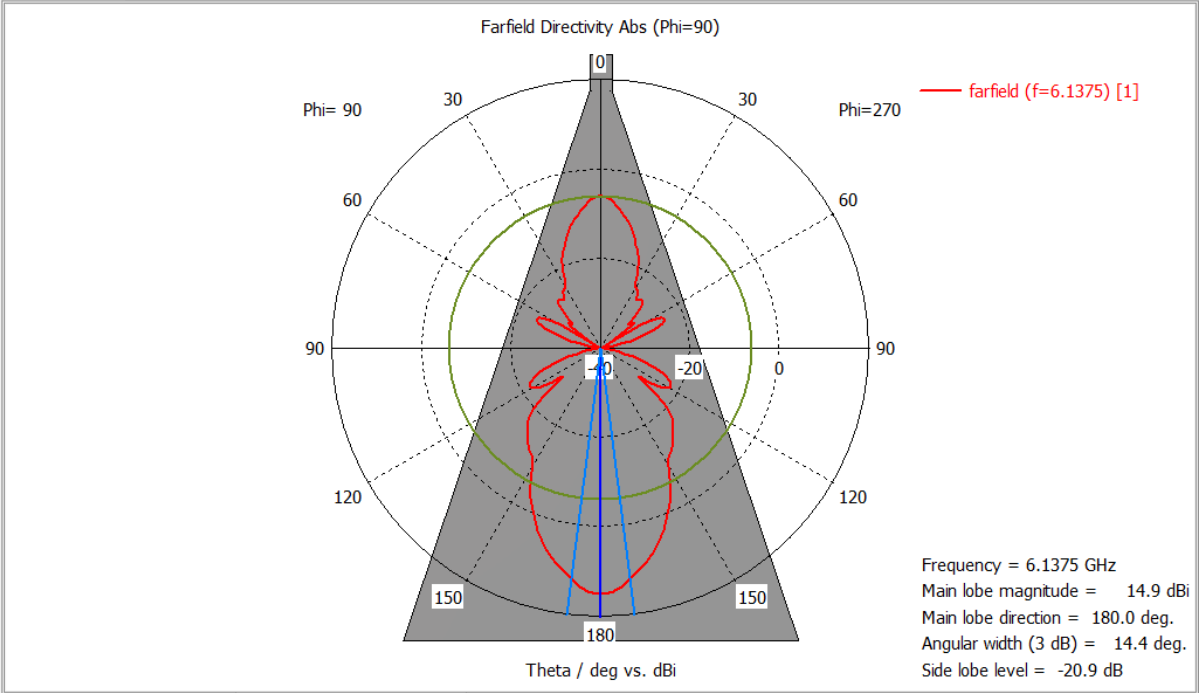

- The gain in the direction of the antenna axis is 14.9 dB.
- The frequency range is 5,85-6,425 GHz.
All structural elements are made of stainless steel which significantly increases the service life of the
antenna in environmental conditions.
