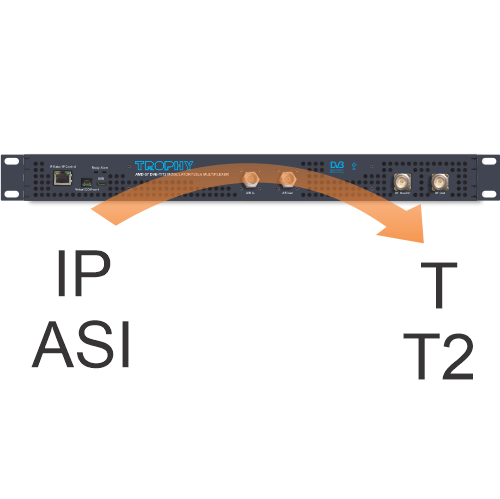

AMD-57-DVB-T/T2 modulator/multiplexer

$4,200.00

Up to 120 channels embedded MUX!

AMD-57-T_T2 mod_mux datasheet

1 file(s) 14.7Mb

Download

Category: Modulators&Multiplexers

Description

AMD-57-DVB-T/T2 MODULATOR / MULTIPLEXER is a brand new DVB-T/T2 modulator/multiplexer designed for applications over satellite in full compliance with the DVB-T and DVB-T2 standards.

Several modes of inputs bit rate adaption are possible: PCR adaptation, Padding insertion, Null Packet Deletion & Padding Insertion and Dummy BBFrame insertion. An internal PRBS generator can be used to generate a RF spectrum without available inputs.

The AMD-57-DVB-T/T2 MODULATOR / MULTIPLEXER converts transponders included IP or ASI transport stream into COFDM signal to transmit them in Terrestrial TV transmitter or MMDS Up-Converter.

DVB-T/T2 carrier from available up to 120 transport streams are multiplexed and generated. The internal processing allows the output of DVB signals in full HD resolution.

The device receives a data stream via Gigabit Ethernet or ASI. It can receive up to 120 transport streams from the TROPHY Head End or from another IP sources included MPEG transport streams.

The AMD-57-DVB-T/T2 MODULATOR / MULTIPLEXER integrates all the mechanisms required to feed transmitter sites with ASI or IP streams in highly secure formats. MODULATOR include all the latest state-of-the art technological features, and Broadcasters are able now to take full advantage of this second generation Terrestrial Digital TV technology, and deploy techniques such as SISO/MISO and Multi-PLP layered modulation.

MAIN FUNCTIONS OF AMD-57-T/T2 MODULATOR / MULTIPLEXER:

covers the 30…900MHz range and offers bit rate up to 80 Mbps;

provides up to 120 independent multiplexed MPEG Transport Streams to a single carrier, with built-in support for TROPHY-ACCESS Conditional Access System for content protection. Software license needs to enable TROPHY-ACCESS scrambler solution;

also equipped ASI transport stream input;

takes full advantages of the IP technology to provide a cost effective, highly reliable and flexible solution;

has highly efficient multiplexing algorithms with PCR correction;

supports all PIDs of services, including EIT, NIT and LCN;

supports Full PID remapping;

provides effective compensation of network jitter;

supports Control and Set-Up via WEB-interface;

has high performance and reliability.
