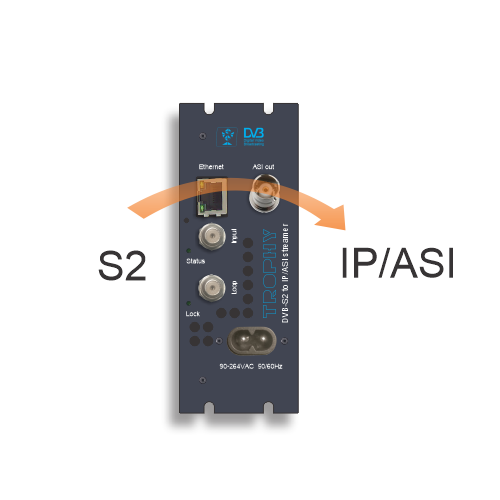

DVB-S2 to IP/ASI streamer

$420.00



DVB-S/S2 FTA or TROPHY-ACCESS signal input. IP+ASI outputs



datasheet-thumbnail-100
Icon

DVB-S2 to IP_ASI streamer/descrambler

1 file(s) 1.90 MB
Download



Out of stock

Category:

Description



Options:

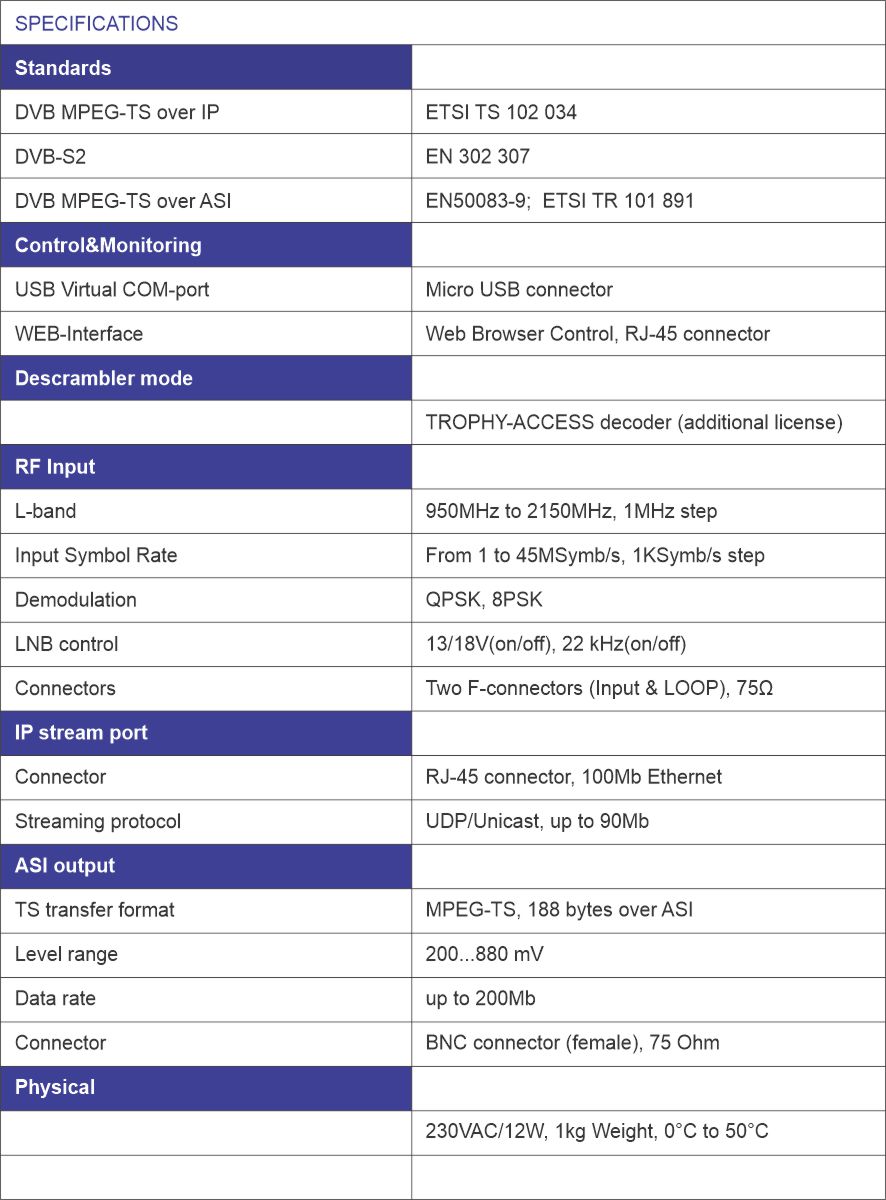

Input frequency of receiver 950 … 2150 MHz
Input signal level -65 … -25 dBm
S/N Not less than 7 dB
Input impedance 75 Ohm
Demodulation QPSK / 8PSK
Input transponder
symbol rate		 1 … 45 Msymb/s (QPSK)
1 … 45 Msymb/s (8PSK)
Max operation input
bit rate		 120 Mb
FEC 1⁄2, 2⁄3, 3⁄4, 5⁄6, 7⁄8 (QPSK)
1⁄2, 3⁄5, 2⁄3, 3⁄4, 4⁄5, 5⁄6, 7⁄8, 8⁄9,
9⁄10 (8PSK)
TROPHY-ACCESS embedded
decryptor		 Original ID
Operating temperature 0°С … 45°С
Supply voltage 100-240VAC, 50/60Hz

Interfaces:

Input interface SAT IF 950-2150 MHz
Output interface Ethernet 100BASE-T (UDP, unicast)
Output interface ASI, 188byte packets
Control interface WEB
Input connector SAT F – connector, 75 Ω
Output connectors RJ-45,
75 Ω BNC,
LOOP F-connector
