L-band 8ch combiner /24VDC&10MHz ref

$280.00

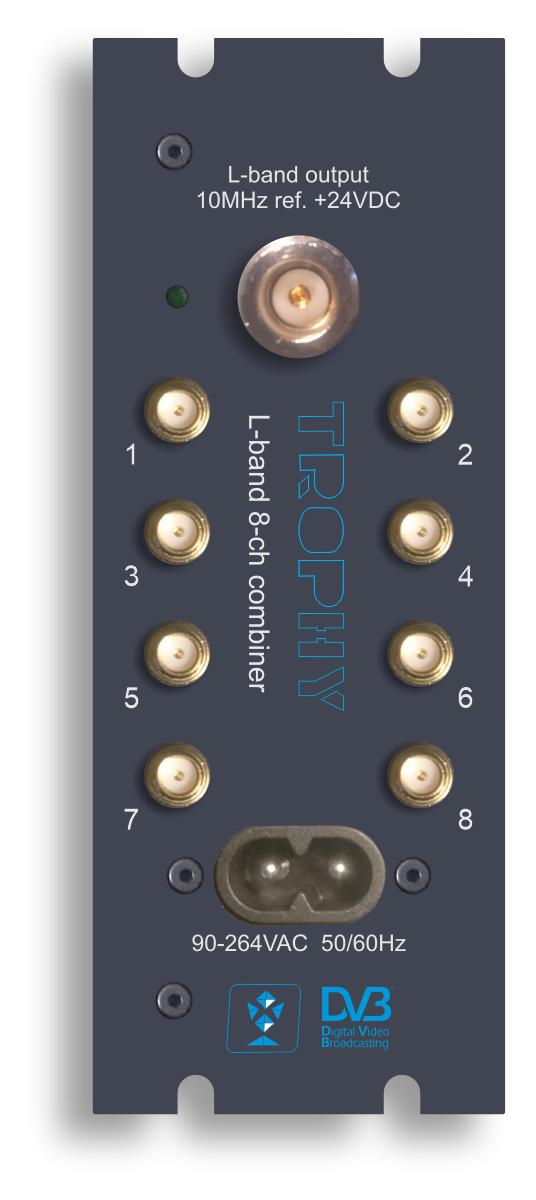

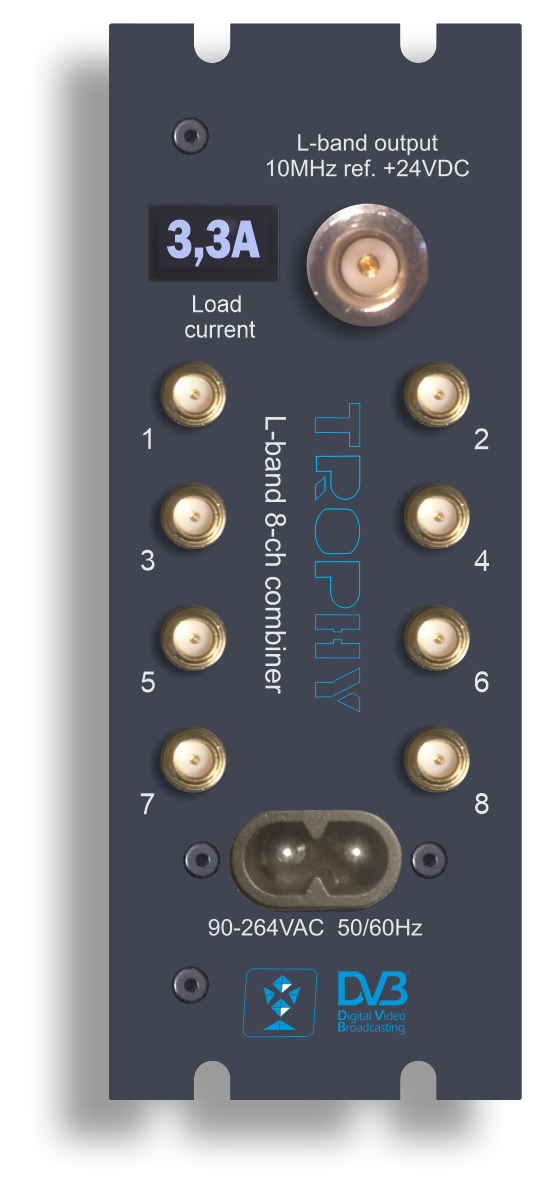

AMD series 24VDC&10MHz L-band 8-channel combiner

 datasheet-thumbnail-100




Description

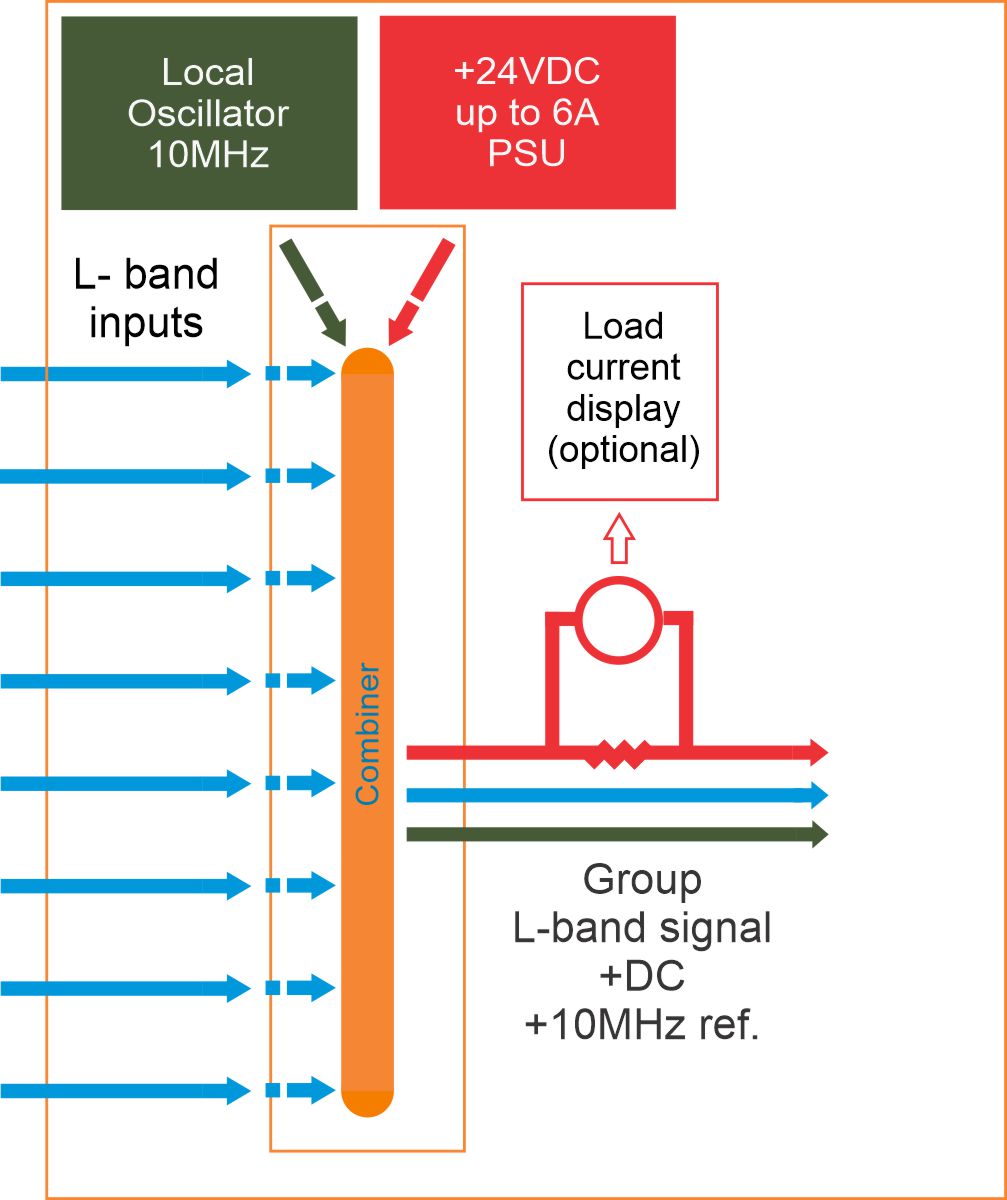

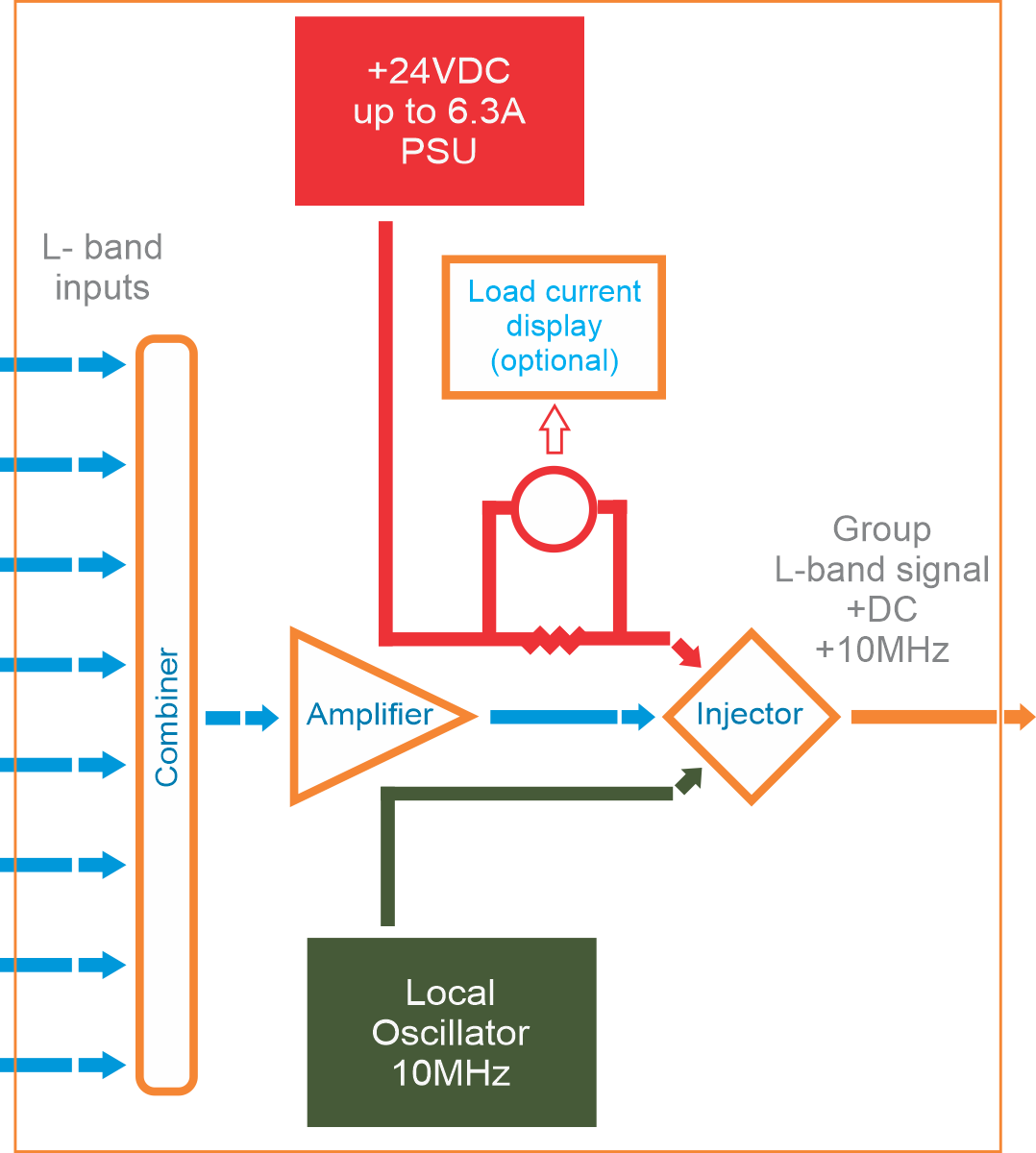

AMD series L-BAND 8-CHANNELS COMBINER/24VDC&10MHz REFERENCE combines eight L-band carriers, injects 10MHz reference signal and 24VDC voltage and passes group signal for feeding of MVDS or VSAT BUC (Block Up Converter). COMBINER has embedded 24V / 6A power supply unit.
Modules are intended for indoor use only.
