4-channels Common Interface DVB-T/T2/C to IP streamer

$540.00

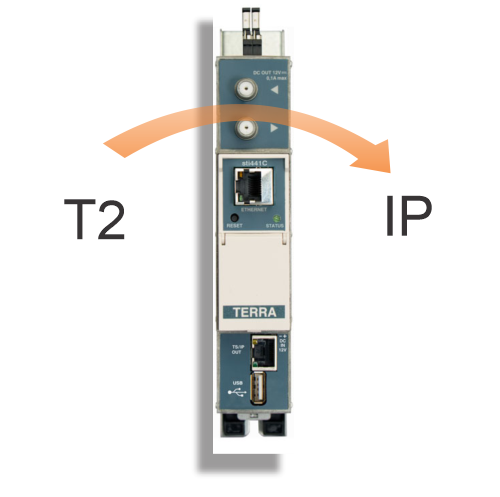

STI441C DVB-T/T2/C to IP streamer designed to broadcast in multicast on an IP network the services (TV or Radio programmes) issued from FTA or encrypted digital reception. The streamer can descramble encrypted services by two conditional access (CA) modules.

STI-441C_Streamer_datasheet

1 file(s) 1.7Mb

Download

Category: DVB Head-End

Description

Characteristics:

Input: four DVB multi program transport streams (MPTS).
Output: up to 256 simultaneous, IP-encapsulated services (TV or Radio programs), with individual multicast addresses and 4 MPTS streams.
• Information filtering of DVB tables.
• UDP & RTP transmission protocols.
• Web interface for configuration and setting.
• SAP & SDP protocols that facilitate automatic service selection on the user’s STB and provide information to external servers.
• PID filtering.
• PSI/SI parsing.
• Transparent ECM & EMM messaging.
• PAT, PMT and SDT table regeneration.
• Routing of CAT, EIT, TDT tables.
• Configurable QoS marking.
• Configurable Time To Live.
• TS file streaming from USB flash.
• Single cable interface (EN50494, EN50607) support.
